[Guide] Flashing ROMS/KERNELS/RADIOS [Video/Pics]

This is a discussion on [Guide] Flashing ROMS/KERNELS/RADIOS [Video/Pics] within the HTC Thundebolt Hacking Guides forums, part of the HTC Thunderbolt Hacks category; I thought I'd take some screen shots of Clockwork Mod Recovery and show you how I flash ROMS and KERNELS... To each his/her own...I may ...

+ Reply to Thread
Page 1 of 10 1 2 3 ... LastLast
Results 1 to 10 of 96
Like Tree30Likes

Thread: [Guide] Flashing ROMS/KERNELS/RADIOS [Video/Pics]

  1. #1
    Tbolt Conveyor
    Member #
    79
    Join Date
    Feb 2011
    Location
    NORCAL
    Posts
    495
    Liked
    65 times

    [Guide] Flashing ROMS/KERNELS/RADIOS [Video/Pics]

    I thought I'd take some screen shots of Clockwork Mod Recovery and show you how I flash ROMS and KERNELS...

    To each his/her own...I may be doing things differently then others...I may take extra steps...I may be doing more/less than I should. BUT I have yet to encounter any issues doing things the way I will show you here in this thread.

    Theres two methods for flashing ROM's

    1)ROM Manager

    2)ClockworkMod Recovery

    I STRONGLY suggest you flash through Recovery! Some will argue with me but I don't believe ROM Manager does a thorough wipe and it will lead to problems.

    So for starters when you open ROM Manager you will see this:

    I always like to start things off by hitting the "Flash ClockworkMod Recovery" at the top...Don't know why or what but I just do...


    EASY METHOD OF INSTALLING ROM is straight from the GUI
    1.Click on "Install ROM from SD Card"

    2.Choose the ROM that's on your SD Card

    3.Depending on the ROM developer and if you are upgrading or changing to a completely new ROM you will want to "Wipe Data and Cache" and yes if you haven't done so already make a Nandroid or "Backup Existing ROM"

    That's it! Just sit back and let it do it's thing...


    Now I'll show you the Recovery way:preferred way!

    Press on "Reboot into Recovery" and you'll see a box appear like this:

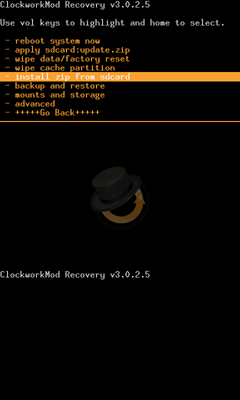

    That should bring you to the Manual Interface that looks like this:



    Use the Vol up/down to move the highlighted bar and power button to select

    Each action has a confirmation, you'll see a screen that asks if you want to do what you had previously selected and you'll see:
    -no
    -no
    -no
    -Yes-(desired action)
    -no
    -++++go back+++

    So you have to confirm most if not all your actions this way.

    -wipe data/factory reset(WARNING this will erase all your data!) but if you are flashing a new ROM (as in no previous versions have been flashed before) its best if you start with a clean slate(if flashing updates to existing ROM's ie BAMF 1.6.1 to1.6.2 this step can be skipped). So make sure you have a back up prior!

    After this has completed
    -wipe cache partition

    Now go to -mounts and storage

    Format the following
    /cache
    /data
    /system


    NOW go back to main menu
    Then down to -advanced

    Go down to -Wipe Dalvik Cache (REPEAT THIS STEP 2-3 TIMES)



    OK Now we've prepared the phone for the new ROM lets go back to the main menu and
    Select "-install zip from sdcard"


    Then go to "-choose zip from sdcard"


    Scroll down to the .zip you want to install:


    Yes you want to install it:


    Now it should begin to install the file and when its done you may have to select "go back" then "reboot"
    Last edited by btango05; 05-25-2011 at 09:09 AM.



  2. #2
    Tbolt Conveyor
    Member #
    79
    Join Date
    Feb 2011
    Location
    NORCAL
    Posts
    495
    Liked
    65 times

    KERNEL and Custom Themes Flash Guide

    KERNEL's are flashed in the same way you would flash a ROM

    Prior to KERNEL Manager you would download a KERNEL and it would be a zip file

    Place the KERNEL.zip on your sdcard

    Reboot into RECOVERY

    and scroll down to -install zip from sdcard


    But after this thread was created an APP was made called "Kernel Manager" and it works relatively well.

    Sometimes if not often Theme developers will design custom framework such as different clocks/battery indicators/skins etc and they too will be a zip file...Flash them using this method too!
    Last edited by btango05; 05-25-2011 at 09:23 AM.
    K3MPO, opossum, kdizz23 and 1 others like this.

  3. #3
    Tbolt Conveyor
    Member #
    79
    Join Date
    Feb 2011
    Location
    NORCAL
    Posts
    495
    Liked
    65 times

    RUU/RADIO Flash via HBOOT

    This video demonstrates the process in flashing a RUU or RADIO via HBOOT

    Last edited by btango05; 05-25-2011 at 09:16 AM.

  4. #4
    Super Moderator
    Member #
    454
    Join Date
    Mar 2011
    Location
    TX
    Posts
    2,058
    Liked
    128 times
    great guide - and now stuck

    "...life is 10% what happens to me and 90% how I react to it."
    The only dumb question is the one not asked.
    Guidelines of Conduct


  5. #5
    *Rescue Squad*
    Member #
    190
    Join Date
    Feb 2011
    Posts
    184
    Liked
    8 times
    maybe add something for flashing new radios

  6. #6
    Tbolt Conveyor
    Member #
    79
    Join Date
    Feb 2011
    Location
    NORCAL
    Posts
    495
    Liked
    65 times
    Quote Originally Posted by Abe21599 View Post
    maybe add something for flashing new radios
    Working on it

  7. #7
    *Rescue Squad*
    Member #
    190
    Join Date
    Feb 2011
    Posts
    184
    Liked
    8 times
    not that i need the help or anything...



  8. #8
    Tbolt Conveyor
    Member #
    79
    Join Date
    Feb 2011
    Location
    NORCAL
    Posts
    495
    Liked
    65 times
    Well couldn't take screen shots in HBOOT so I made a little vid

  9. #9
    TBolt Lurker
    Member #
    298
    Join Date
    Mar 2011
    Posts
    10
    Liked
    0 times
    Might be stupid question, but does flashing a new ROM wipe the phone like when I rooted?

  10. #10
    Tbolt Conveyor
    Member #
    1746
    Join Date
    Apr 2011
    Posts
    260
    Liked
    11 times
    It is not always necessary to wipe before flashing a new ROM. You should read the ROM creators instructions on what to do. But if you are having problems after flash, the first thing you should do is wipe and reflash if you didn't wipe before.

    You should always BACKUP using ROM Manager before starting any work on a new flash.
